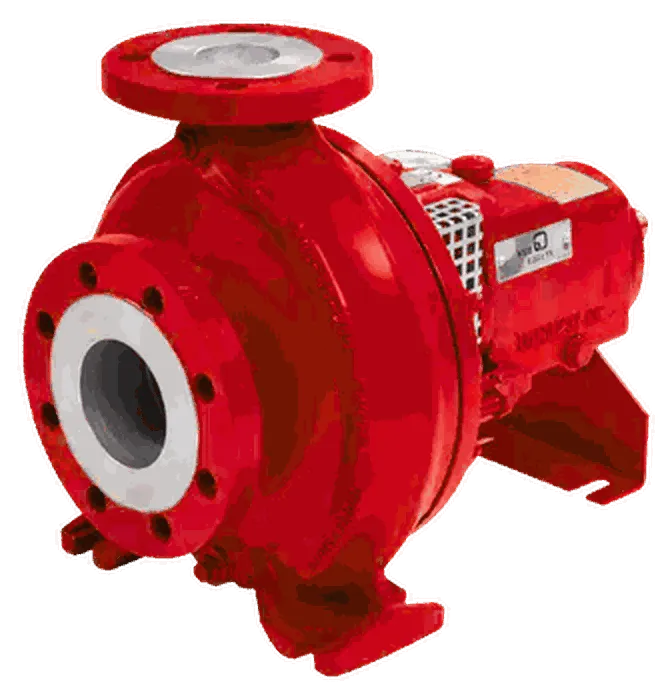

View detailsEnd Suction Fire Pump
Flow 5–800 m³/hr · Head 5–150 m · 0.5–200 kW
Versatile and compact centrifugal pumps widely used in fire protection and industrial applications, delivering reliable performance for water transfer and pressure boosting needs.
Compact design. Powerful performance.
End suction pumps feature a simple, space-saving design with easy installation and maintenance. Supplied in the MEGA / ETANORM range.
Types
- Close coupled (monoblock)
- Long coupled pumps
- Back pull-out design pumps
| Specification | Value |
|---|---|
| Flow range | 5 to 800 m³/hr |
| Head range | 5 to 150 m |
| Power range | 0.5 kW to 200 kW |
| Speed | 1450 / 2900 RPM |
| Temperature | up to 120°C |
| Series | MEGA / ETANORM |
Ranges indicative — final selection per application and manufacturer datasheet.
Applications
Features
- Space-saving compact design
- Easy installation and servicing
- Cost-effective solution
- Wide operating range
