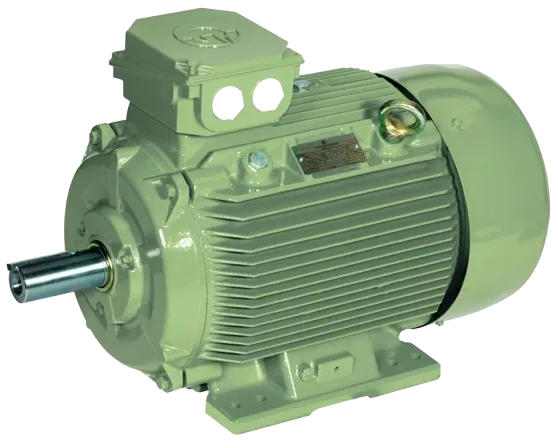

Crusher Application Motors

CG has a complete range for crusher series applications, which caters to the fluctuating load & high starting requirements. These crusher series motors are designed & manufactured with high-grade material properties that meet high service factor loads, higher load impacts, etc.

Ranges indicative — final selection per application and manufacturer datasheet.

Features

• EN24 Shaft: It ensures the shaft can withstand the heavy shock loads and mechanical stresses typical in crusher applications, enhancing durability and reliability under severe operating conditions.
• Roller Bearing at Drive End (DE) – for 4 & 6 Pole Motors: In crusher duty motors, where heavy radial forces are common due to the direct coupling with machinery, roller bearings at the DE ensure longer bearing life and improved motor performance.
• Space Heater (280 Frame & Above): To prevent moisture condensation inside the motor during shutdown periods, especially in humid or outdoor environments. It avoids insulation damage and corrosion, ensuring longer motor life and improved reliability i
• PTC150°C - 3 Nos (280 Frame & Above): Provides thermal protection to stator winding from overheating.
• VPI & Epoxy Gel Coat on Overhang: Improves dielectric strength and resistance to vibration. The epoxy gel coat on the overhang provides additional mechanical protection and moisture resistance, crucial for ensuring long-term performance in dusty crus
