Range 55 kW to 1000 kW
With the Double Cage Motor for Cement Mill, CG introduced an innovative solution for raw and cement ball-mill twin drives, traditionally powered by Slip Ring or other wound rotor motors, globally. Our new approach offers a significantly more cost-effective option compared to conventional methods.

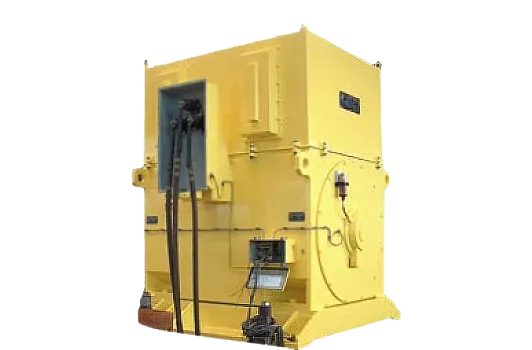

Cost-Effective Double Cage Motor for Cement Ball Mills
With the Double Cage Motor for Cement Mill, CG introduced an innovative solution for raw and cement ball-mill twin drives, traditionally powered by Slip Ring or other wound rotor motors, globally. Our new approach offers a significantly more cost-effective option compared to conventional methods. This is primarily due to the double-cage motor being substantially more economical than a Slip Ring motor.
Furthermore, our solution eliminates the need for costly starting equipment, along with the associated short-circuiting switch and controller.
| Specification | Value |
|---|---|
| Range | 55 kW to 1000 kW |
| Frame Sizes | 250 to 450 |
| Voltage | Up to 690V |
| Frequency | 50 & 60 Hz |
| Ambient Temp. | -20°C to 50°C |
| Enclosures | IC411, IC416 |
Ranges indicative — final selection per application and manufacturer datasheet.
