Range 0.55 kW to 1000 kW in cast iron, 0.18 kW to 7.50 kW in Aluminium
The escalating cost of energy necessitates a strategic approach to conservation at every stage of the manufacturing process. Within industrial operations, electric motor-driven systems account for approximately 70% of total energy consumption.

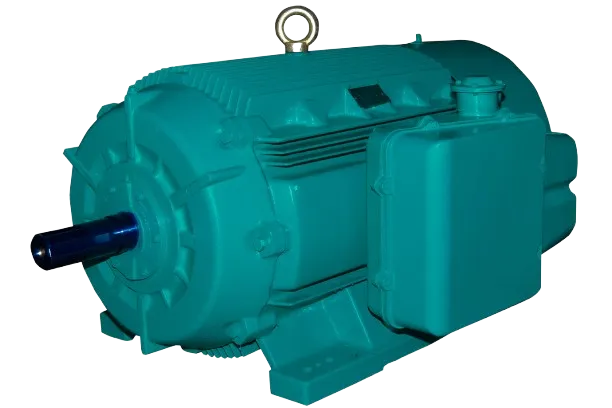

The escalating cost of energy necessitates a strategic approach to conservation at every stage of the manufacturing process. Within industrial operations, electric motor-driven systems account for approximately 70% of total energy consumption. This significant figure underscores the critical need for innovative technological solutions to achieve the highest possible efficiency levels. CG addresses this challenge with its Apex Series of energy-efficient motors, meticulously developed to comply with the latest IS12615 and IEC60034-30-1 standards.
The Indian standard further augments the IEC requirements by specifying additional performance criteria crucial for robust industrial applications. These include essential metrics such as breakaway torque, breakaway current, full load speed, full load current, and frame size designation, ensuring comprehensive performance and reliability for your industrial needs.
| Specification | Value |
|---|---|
| Range | 0.55 kW to 1000 kW in cast iron, 0.18 kW to 7.50 kW in Aluminium |
| Frame | IEC 80 to 450 in cast iron, IEC 63 to 132 in Aluminium |
| Pole | 2 to 8 (Others upon request) |
| Frequency | 50 or 60 Hz |
| Voltage | Up to 690V |
| Mounting | Foot / Flange / Face |
| Efficiency | IE2/IE3 |
| Ambient Temp. | -20°C to +50°C (Others upon request) |
| Protection | IP55 (Others upon request) |
| Feature | Inverter Compatible |
Ranges indicative — final selection per application and manufacturer datasheet.
AXELERA Process Performance Motors, an indigenous innovation, are engineered for modern industrial demands. With advanced design and robust build, they offer superior performance, reliability, and energy efficiency.
View details
CG offers Kibosh Brake Motors, renowned for their exceptional reliability and highly competitive delivery times. These motors are expertly designed to serve a wide array of demanding braking applications, including cranes, hoists, rolling mills, wind turbines, and elevators.
View details
CG has a complete range for crusher series applications, which caters to the fluctuating load & high starting requirements. These crusher series motors are designed & manufactured with high-grade material properties that meet high service factor loads, higher load impacts, etc.
View detailsTalk to an Engineer
Every application is different. Share your flow, head, application, fluid characteristics and project requirements with our engineering team. We will help you identify the right equipment for your application.
