Range 0.37kw to 500kw
CG offers advanced Increased safety Motors (Ex`ec`), engineered to meet the highest quality and performance standards as specified by both Indian and international regulations. These motors are suitable for use in Zone II hazardous environments, commonly found in chemical plants, petrochemical refineries, and mining operations.

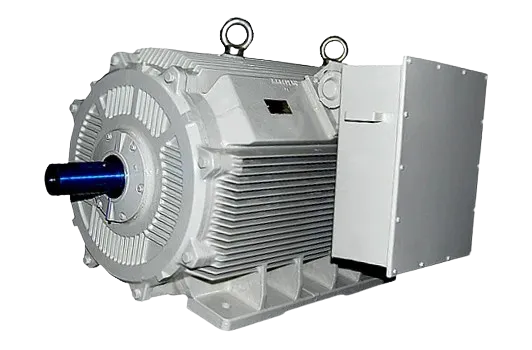

Certified Increased Safety Ex ‘ec’ Motors for Zone II
CG offers advanced Increased safety Motors (Ex`ec`), engineered to meet the highest quality and performance standards as specified by both Indian and international regulations. These motors are suitable for use in Zone II hazardous environments, commonly found in chemical plants, petrochemical refineries, and mining operations.
Optional accessories available upon request include a thermistor for thermal protection, a space heater to prevent moisture build-up, insulated bearings for IEC frame sizes 200 and above, and roller bearings for IEC frame sizes 225 and above.
| Specification | Value |
|---|---|
| Range | 0.37kw to 500kw |
| Frame | IEC 80 to 400 in cast iron |
| Mounting | Foot/Flange/Face |
| Pole | 2 to 8 Other upon request |
| Frequency | 50 or 60 Hz |
| Voltage | 415V, other on request |
| Ambient | -20 to + 45 ° C; other upon request |
| Protection | IP 55, others upon request |
| Temp Class | T3 |
| Feature | Complying with PESO, ATEX, IECEx, ECAS |
Ranges indicative — final selection per application and manufacturer datasheet.
