AmaDrainer® 3
Ama-Drainer 300 series Vertical fully floodable submersible motor with In built swing check valve. Jacket cooled single phase motor with integrated temperature switch. Float switch for automatic operation.

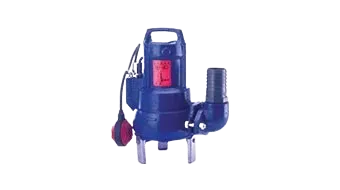

View detailsAma-Porter
Vertical, monobloc pumpset, free flow impeller of two sizes, 1Ø and 3Ø motors with IP 68 protection, 1Ø motor with built-in thermal overload protection and float switch, bi-directional mechanical seal.
Vertical monobloc submersible pumps are designed for efficient and reliable drainage of clean water and wastewater containing solids. Featuring a free-flow impeller available in two sizes, these pumps ensure smooth fluid handling and dependable performance. They are equipped with single-phase and three-phase motors with IP68 protection, while single-phase models include built-in thermal overload protection and a float switch for automatic operation. The bidirectional mechanical seal enhances operational reliability and durability. These pumps are ideal for surface water and rainwater removal, sump drainage, flood-prone areas, agricultural pits, canals, and general wastewater management applications.
| Specification | Value |
|---|---|
| Capacity | Up to 29 m3/h |
| Discharge Head | up to 16 m |
| Motor | 1.5kW max with three phase syncronous motor, 1.1kW max.with single phase A.C. motor |
| Temperature | upto +40°C (+70 °C for short periods) |
| Sizes | 501 SE/ 503 SE/501 ND/503 ND |
| Installation type | Transportable |
Ranges indicative — final selection per application and manufacturer datasheet.
Features
- High Operating Reliability – Robust motor design with integrated thermal overload protection and a fully encapsulated, watertight motor for dependable performance under demanding conditions.
- Safe Electrical Connection – Polarized plug-type connector prevents incorrect insertion, ensuring safe and convenient electrical connections.
- Easy Maintenance – Stainless steel wetted bolts and a service-friendly design allow easy dismantling, even after years of operation.
- Leak-Proof Construction – Closed-coupled pump design minimizes the risk of leakage and ensures reliable operation.
- Clog-Free Performance – Large free passage with a free-flow impeller (F) reduces clogging caused by coarse particles and solids.
- Long Service Life – Corrosion-resistant stainless steel shaft provides excellent durability and resistance to harsh operating conditions.
- Reliable Mechanical Sealing – Bi-rotational mechanical seal with special SiC/Al₂O₃ contact faces ensures effective sealing, enhanced wear resistance, and extended service life.
