Ama-Porter
Vertical, monobloc pumpset, free flow impeller of two sizes, 1Ø and 3Ø motors with IP 68 protection, 1Ø motor with built-in thermal overload protection and float switch, bi-directional mechanical seal.
View detailsAmarex IN
Head up to 49 m Flow rate up to 46 l/s

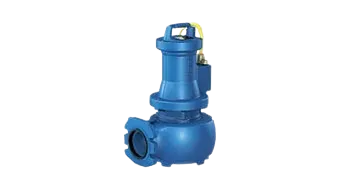

Single stage, submersible, centrifugal pumps of closed coupled (monobloc) construction. Amarex IN pumps are suitable for handling waste water transport, storm water transport, waste water treatment etc.
Amarex IN pumps are single-stage, submersible centrifugal pumps featuring a compact, closed-coupled (monobloc) design for efficient and reliable wastewater handling. Designed for demanding applications, these pumps are suitable for wastewater transportation, stormwater drainage, sewage treatment plants, and industrial wastewater management. Their robust construction ensures dependable performance, easy installation, and efficient operation in various water and wastewater handling systems.
| Specification | Value |
|---|---|
| Pump sizes | DN 50/65 and DN 100 |
| Flow rate up to | 46 l/s |
| Head up to | 49 m |
| Temperature Standard (ULG) (up to 80 °C for a short period of time) | up to 55 ° |
| Speed | 1,450 rpm and 2,900 rpm |
| Power up to | 4.2 kW |
Ranges indicative — final selection per application and manufacturer datasheet.
Features
- Significant energy savings High efficiency through optimized hydraulic system
- No risk of leakage With 2 mechanical seals
- Flexibility Optional choice of impeller material with stainless steel and cast iron variant. Various installation types to suit different building structures
- Easy rewinding Access from both sides of the motor for easy pull out/in of stator, easy rewinding & commissioning
- Monitoring Sensors trigger a warning in the event of overheating or ingress of moisture
